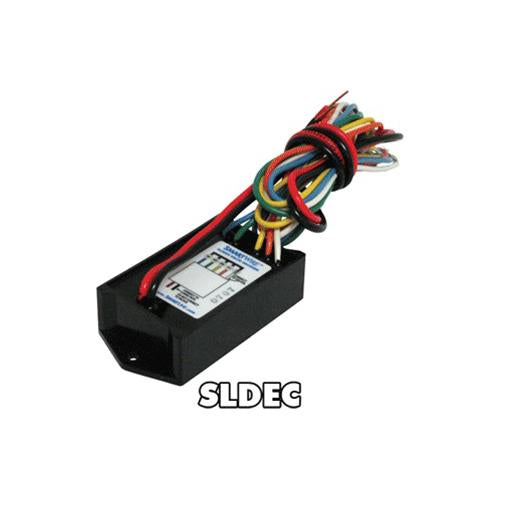

Weathermatic - Single-Zone Decoder - SLDEC1

SLDEC Single-Zone Valve Decoder for SmartWire SL9600TW Two-Wire Series Controller

DECODER FEATURES

• Single valve decoder
• Decodes signals from Decoder Module to open and close valves
• Input voltage 24 - 28VAC from 2-Wire path
• Shock resistant
• Surge protection
• Fully programmable for valve addresses using Decoder Module
• Freeze/heat resistant (-20° to 60°C)
• 14 gauge PVC-coated connecting wires
• Sealed electrical components for protection from water and dirt
• Operates valves to a maximum of 100' (30m) from decoder
• Diagnoses and reports failed solenoids to the Decoder Module
• Auto shut-down if communication with Decoder Module is lost

How it Works

Wiring Sizes

Downloads

• SmartWire Owners Manual

• Smartwire Cut Sheet
